Ultra-low-IQ, 50-mA linear voltage regulator with a fixed 3.3V output and 4% accuracy. Features a 105mV dropout voltage and 1.2µA input bias current, operating from 1.8V to 5.5V input. This positive output regulator offers a 50dB PSRR and is housed in a compact, lead-free SC package (1.25mm x 2mm x 0.9mm). Ideal for power management applications requiring minimal quiescent current.
PackageSC
PolarityPositive
Power318mW
Quick Jump:
Technical Specifications
Texas Instruments TPS79733DCKT technical specifications.
General
Accuracy
4%
Package/Case
SC
Dropout Voltage
105mV
Height
0.9mm
Input Bias Current
1.2uA
Lead Free
Lead Free
Length
2mm
Max Input Voltage
5.5V
Min Input Voltage
1.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Power Dissipation
318mW
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
50mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
4%
Package Quantity
250
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
318mW
Power Supply Rejection Ratio (PSRR)
50dB
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Thickness
900um
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS79733DCKT Datasheet
Download the complete datasheet for Texas Instruments TPS79733DCKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

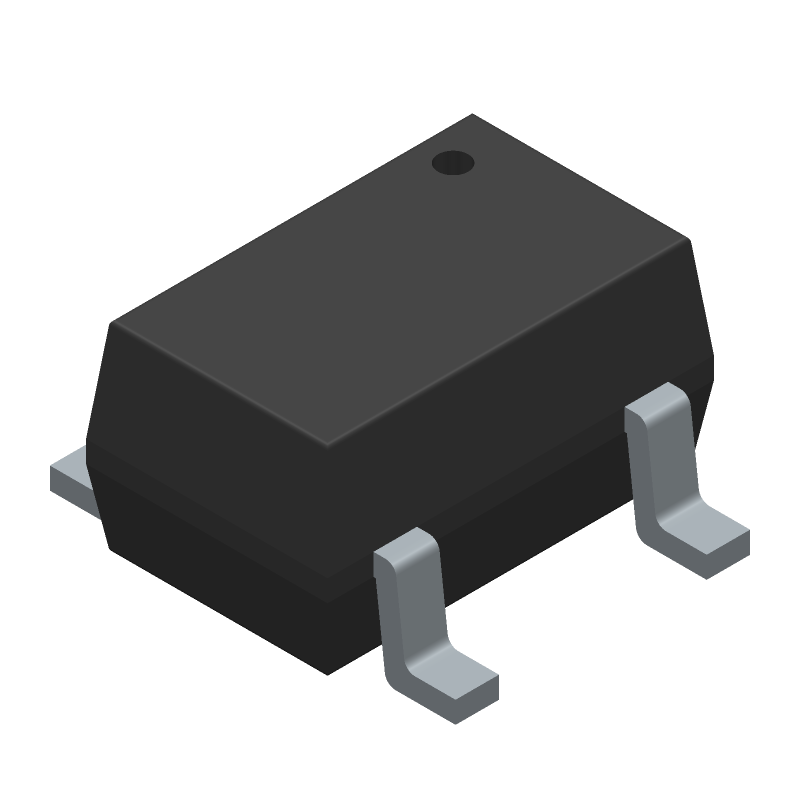

Product Images
