Positive fixed output LDO regulator, 3.3V nominal output voltage with 1% accuracy. Features a 90mV dropout voltage and 200mA maximum output current. Operates from a 2.7V to 6.5V input voltage range with a low 40uA quiescent current. Housed in a compact 6-pin WSON EP package, measuring 2.1mm x 2.1mm x 0.75mm. Suitable for operation between -40°C and 125°C.
PackageSON
PolarityPositive
Power1.54W
Quick Jump:
Technical Specifications
Texas Instruments TPS79933DRVR technical specifications.
General
Accuracy
2%
Package/Case
SON
Dropout Voltage
90mV
Height
0.75mm
Input Bias Current
40uA
Lead Free
Lead Free
Length
2.1mm
Min Current Limit
200mA
Max Input Voltage
6.5V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Power Dissipation
1.54W
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
200mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
1%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
1.54W
Quiescent Current
40uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.217V
RoHS Compliant
Yes
Width
2.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS79933DRVR Datasheet
Download the complete datasheet for Texas Instruments TPS79933DRVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

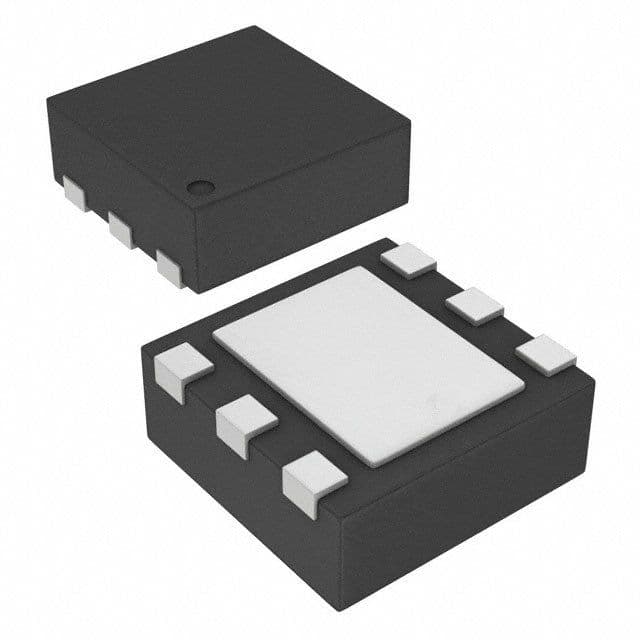

Product Images
