1-A adjustable negative linear voltage regulator with high PSRR. Features a low dropout voltage of 325mV and an output voltage range from -1.18V to -33V. Operates with input voltages from -3V to -36V, offering 1.5% output voltage accuracy. Packaged in a 20-VQFN with dimensions of 5.15mm x 5.15mm x 0.95mm, suitable for operation between -40°C and 125°C.
PackageVQFN
PolarityNegative
Quick Jump:
Technical Specifications
Texas Instruments TPS7A3301RGWT technical specifications.
General
Accuracy
1.5%
Package/Case
VQFN
Dropout Voltage
325mV
Height
0.95mm
Lead Free
Lead Free
Length
5.15mm
Max Input Voltage
-36V
Min Input Voltage
-3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
-33V
Min Output Voltage
-1.18V
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Adjustable
Output Voltage
-33V
Output Voltage Accuracy
1.5%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Negative
Quiescent Current
210uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
-1.157V
RoHS Compliant
Yes
Width
5.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS7A3301RGWT Datasheet
Download the complete datasheet for Texas Instruments TPS7A3301RGWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

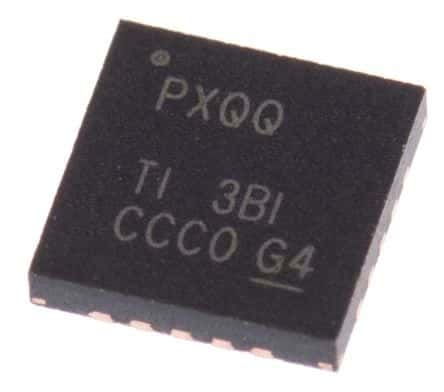

Product Images
