High-efficiency, 600mA step-down converter module with a fixed 1.2V output voltage. Features a low quiescent current of 17µA and a synchronous rectifier for optimal performance. Operates from a 2.3V to 4.8V input voltage range, delivering up to 600mA output current. Integrated protection includes UVLO, OCP, and OTP. Housed in a compact VFBGA package with a profile under 1.0mm, ideal for surface mount applications. Operating temperature range is -40°C to 85°C.
PackageVFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS82674SIPR technical specifications.
General
| Package/Case | VFBGA |
| Efficiency | 90% |
| Features | UVLO, OCP, OTP |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Input Voltage | 4.8V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 600mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 4.8V |
| Output Current | 600mA |
| Output Type | Fixed |
| Output Voltage | 1.2V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 17uA |
| RoHS Compliant | Yes |
| Series | MicroSip™ |
| Synchronous Rectifier | Yes |
| Voltage - Output 1 | 1.2V |
| Width | 2.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS82674SIPR Datasheet
Download the complete datasheet for Texas Instruments TPS82674SIPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

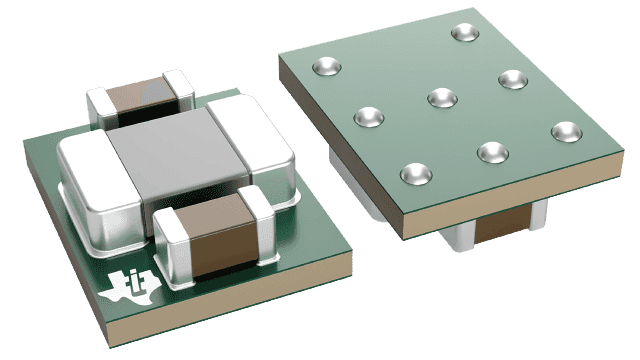

Product Images
