Texas Instruments

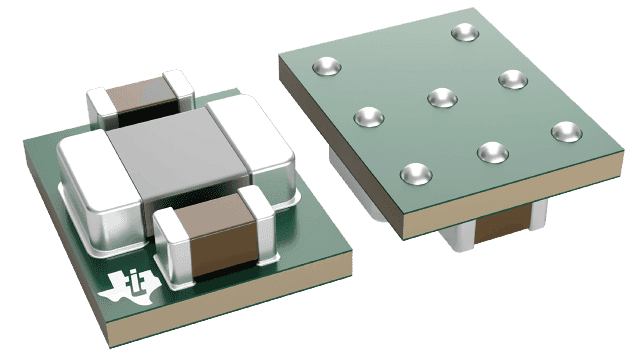

TPS82676SIPT
600mA, High-Efficiency MicroSiP™ Step-Down Converter (Profile <1.0mm) 8-uSiP -40 to 85
PackageVFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS82676SIPT technical specifications.
General
Package/Case
VFBGA
Efficiency
90%
Height
0.9mm
Lead Free
Lead Free
Length
2.95mm
Max Input Voltage
4.8V
Min Input Voltage
2.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
600mA
Max Output Voltage
1.1V
Mount
Surface Mount
Nominal Output Voltage
1.1V
Number of Outputs
1
Output Current
600mA
Output Type
Fixed
Output Voltage
1.1V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Width
2.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS82676SIPT Datasheet
Download the complete datasheet for Texas Instruments TPS82676SIPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
