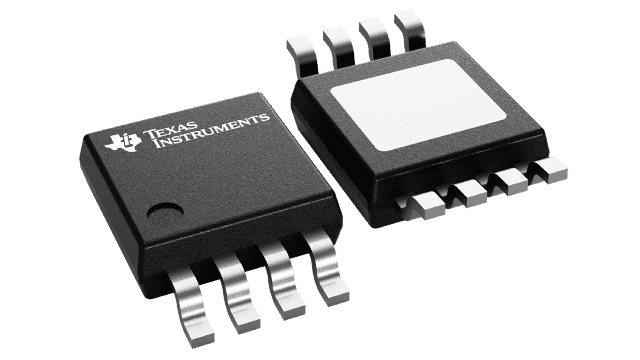

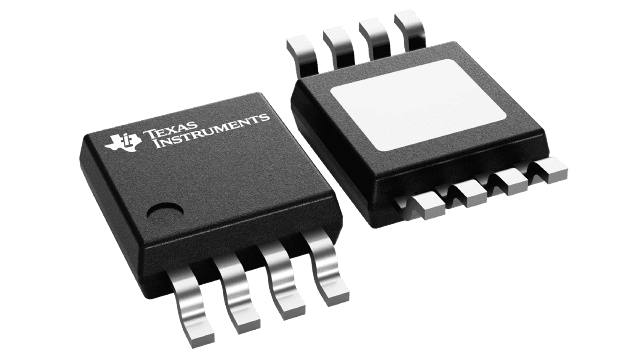

The TPS92561DGNR is a single-channel boost driver IC from Texas Instruments. It operates over a temperature range of -40°C to 125°C and is RoHS compliant. The device features adjustable output voltage, a maximum output current of 2A, and a maximum supply voltage of 42V. It is available in a 2500-unit tape and reel package with a lead-free finish.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TPS92561DGNR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | MSOP |
| Dimming | TRIAC |
| Lead Free | Lead Free |
| Max Input Voltage | 42V |
| Min Input Voltage | 6.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 400V |
| Min Output Voltage | 5V |
| Max Supply Voltage | 42V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Type | Adjustable |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 1.4mA |
| RoHS Compliant | Yes |
| Topology | Boost |
| RoHS | Compliant |
