TPS92690Q1PWPR/NOPB
Automotive N-channel controller for dimmable LED Drives with Low-side current sense 16-HTSSOP -40 to 125
Frequency2 MHz
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS92690Q1PWPR/NOPB technical specifications.
General
| Package/Case | HTSSOP |
| Lead Free | Lead Free |
| Max Input Voltage | 75V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Output Voltage | 72V |
| Min Output Voltage | 3V |
| Max Supply Current | 1mA |
| Mount | Surface Mount |
| Nominal Input Voltage (DC) | 12V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Frequency | 2 MHz |
| Output Current | -1mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 2mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TPS92690-Q1 |
| Topology | Boost, Flyback, SEPIC, Cuk |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS92690Q1PWPR/NOPB Datasheet
Download the complete datasheet for Texas Instruments TPS92690Q1PWPR/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

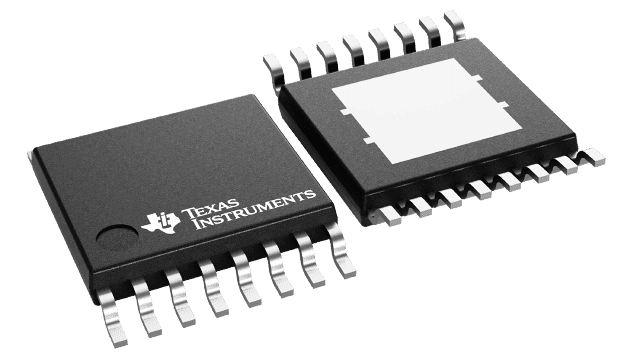

Product Images
