RF Power Amplifier Driver, operating from 3.3 GHz to 3.8 GHz, delivers 30dB gain at 3.8GHz. Features include a 31dBm P1dB, 20dB noise figure, and a 6.5W power dissipation. Operates with a 5V supply voltage, drawing 1.3A current. Packaged in a 32-VQFN EP for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency3.8GHz
PackageVQFN EP
Current950mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TRF1223IRTMT technical specifications.
General
| Package/Case | VQFN EP |
| Frequency | 3.8GHz |
| Gain | 30dB |
| Lead Free | Contains Lead |
| Max Frequency | 3.8GHz |
| Min Frequency | 3.3GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 6.5W |
| Max Supply Voltage | 7V |
| Min Supply Voltage | -5.25V |
| Mount | Surface Mount |
| Noise Figure | 20dB |
| Number of Channels | 1 |
| Operating Frequency | 3.3 GHz to 3.8 GHz |
| Operating Supply Current | 1.3A |
| Operating Supply Voltage | 5V |
| P1dB | 31dBm |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 6.5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 950mA |
| Termination | SMD/SMT |
| Test Frequency | 3.8GHz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TRF1223IRTMT Datasheet
Download the complete datasheet for Texas Instruments TRF1223IRTMT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

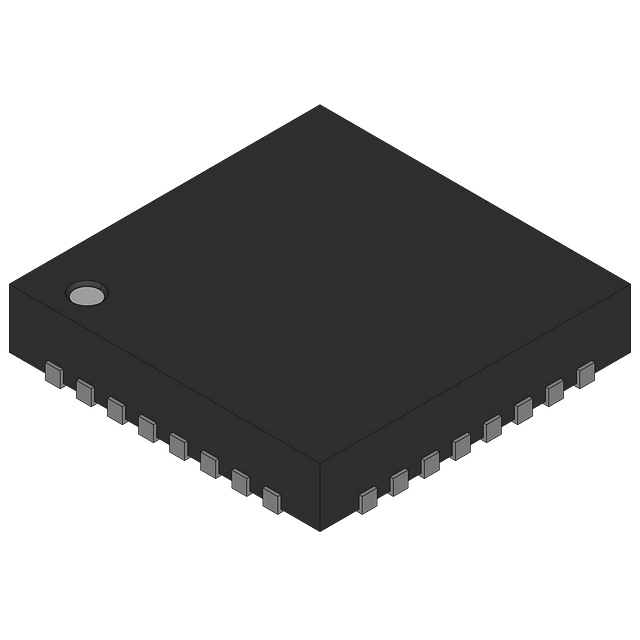

Product Images
