Texas Instruments
TRF7900APW
Fully Integrated Analog Front-End Dual Receiver Base Unit for 27-MHz Wireless Mouse and Keyboard Systems
Frequency27MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments TRF7900APW technical specifications.
General
| Package/Case | TSSOP |
| Current - Receiving | 65mA |
| Data Rate | 5Kbps |
| Frequency | 27MHz |
| Lead Free | Contains Lead |
| Max Frequency | 70MHz |
| Min Frequency | 26.945MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensitivity | -102dBm |
| Weight | 0.004145oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TRF7900APW Datasheet
Download the complete datasheet for Texas Instruments TRF7900APW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

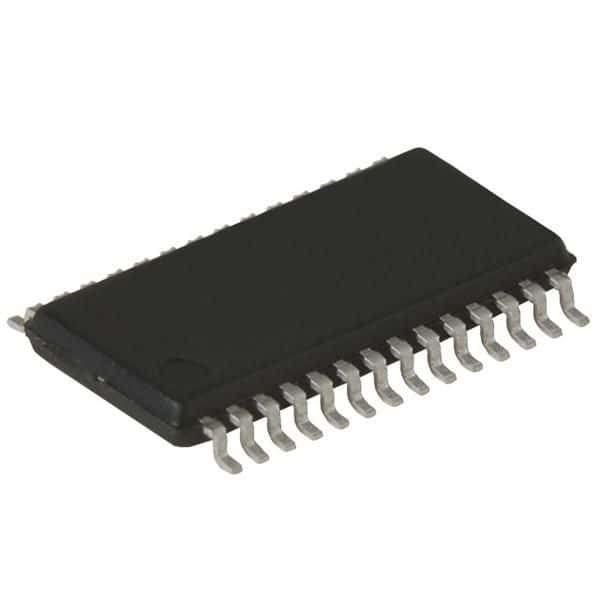

Product Images
