Dual channel RS-232 line driver/receiver, operating at 250Kbps data rate. Features +/-9V output capability and +/-15kV IEC-ESD protection. This transceiver supports full duplex communication with two drivers and two receivers. Encased in a 16-SOIC surface mount package, it operates from a 4.5V to 5.5V supply voltage range, with a typical 5V operating voltage. Suitable for applications requiring robust serial communication over a wide temperature range of -40°C to 85°C.
PackageSOIC
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TRS232EIDWR technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 250Kbps |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Operating Supply Voltage | 5V |
| Output Current | 10mA |
| Output Voltage | 15V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 500ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 10mA |
| Weight | 0.014829oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TRS232EIDWR Datasheet
Download the complete datasheet for Texas Instruments TRS232EIDWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

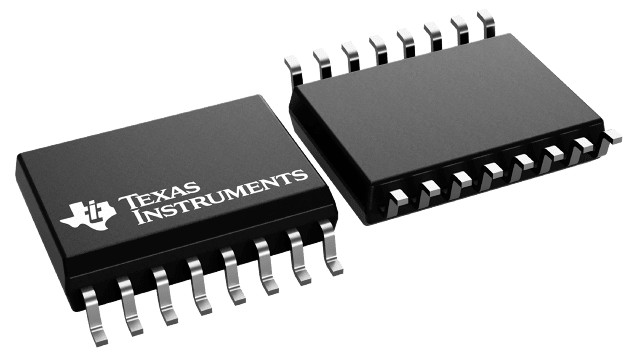

Product Images
