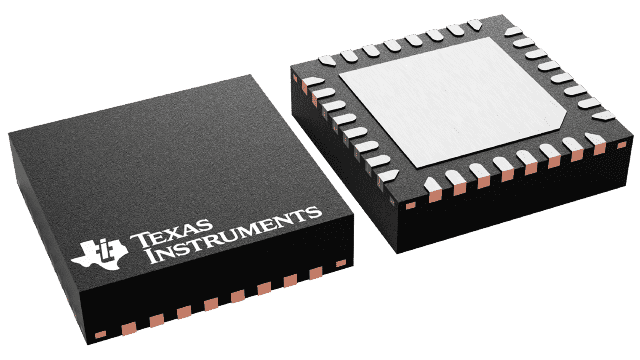

Full-duplex RS-232 transceiver featuring a split supply pin for the logic side. This surface-mount VQFN package component offers 3 drivers and 5 receivers, supporting data rates up to 1000Kbps. Operates with a supply voltage of 5V (3V to 5.5V range) and a maximum dual supply voltage of 5.5V. Designed for a wide operating temperature range from -40°C to 85°C, this RoHS compliant component is packaged on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TRS3253EIRSMR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | VQFN |
| Data Rate | 1000Kbps |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 4.15mm |
| Logic Function | Transceiver |
| Max Dual Supply Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 3 |
| Number of Receivers | 5 |
| Number of Transceivers | 1 |
| Number of Transmitters | 3 |
| Operating Supply Current | 1mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 1mA |
| Weight | 0.00157oz |
| Width | 4.15mm |
| RoHS | Compliant |
