Texas Instruments
TRSF3221ECPW
3-V to 5.5-V Single-Channel RS-232 1-Mbit/s Line Driver/Receiver With +/-15-kV IEC ESD Protection 16-TSSOP 0 to 70
PackageTSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TRSF3221ECPW technical specifications.
General
Package/Case
TSSOP
Data Rate
1000Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Voltage
5V
Output Current
35mA
Output Voltage
5.4V
Package Quantity
90
Packaging
Rail/Tube
Propagation Delay
150ns
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
1mA
Weight
0.002183oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TRSF3221ECPW Datasheet
Download the complete datasheet for Texas Instruments TRSF3221ECPW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

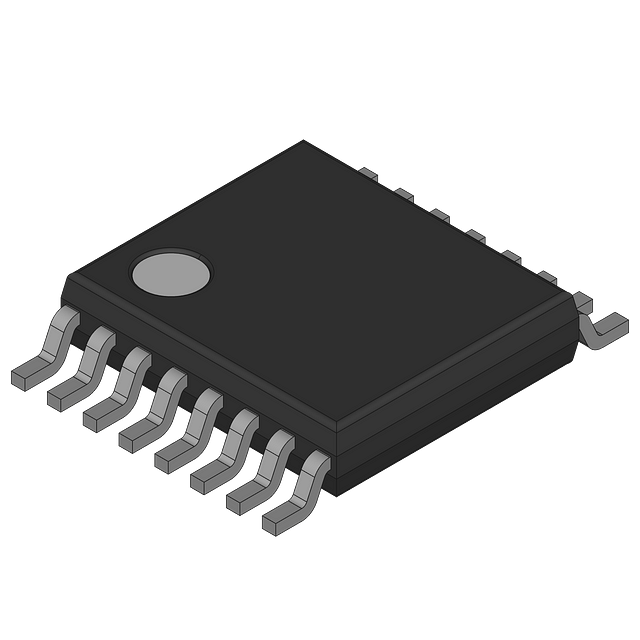

Product Images
