Texas Instruments
TRSF3223EIRGWR
3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver 20-VQFN -40 to 85
PackageVQFN
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TRSF3223EIRGWR technical specifications.
General
Package/Case
VQFN
Data Rate
1000Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Current
1mA
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
0.15us
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Weight
0.002469oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TRSF3223EIRGWR Datasheet
Download the complete datasheet for Texas Instruments TRSF3223EIRGWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

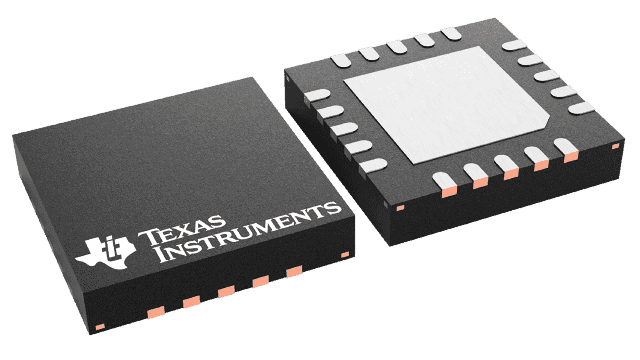

Product Images
