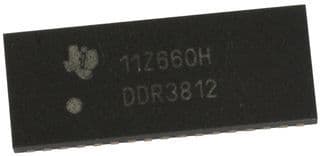

This 12-channel, 2:1 multiplexer/demultiplexer IC operates with a 3V to 3.6V single supply, offering a 1.675GHz bandwidth. Featuring 12 bits and 2 circuits, it provides 12 inputs and 24 outputs with a typical on-state resistance of 12 Ohms and a propagation delay of 40ps. Designed for DDR3 applications, this lead-free, RoHS-compliant component is surface-mount packaged in a 42-WQFN with dimensions of 9.1mm x 3.6mm x 0.75mm, suitable for operation between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TS3DDR3812RUAR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 1.675GHz |
| Height | 0.75mm |
| Lead Free | Lead Free |
| Length | 9.1mm |
| Logic Function | Multiplexer, Demultiplexer |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 300uA |
| Number of Bits | 12 |
| Number of Channels | 12 |
| Number of Circuits | 2 |
| Number of Inputs | 12 |
| Number of Outputs | 24 |
| On-State Resistance | 12R |
| Operating Supply Current | 300uA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 40ps |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Weight | 0.001933oz |
| Width | 3.6mm |
| RoHS | Compliant |
