Texas Instruments
TS3USB221ARSERG4
High-Speed USB 2.0 1:2 Mux/Demux Switch With Single Enable and ESD Protection 10-UQFN -40 to 85
Current30uA
Quick Jump:
Technical Specifications
Texas Instruments TS3USB221ARSERG4 technical specifications.
General
| Bandwidth | 900MHz |
| Data Rate | 480Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Number of Channels | 2 |
| Number of Inputs | 4 |
| Number of Outputs | 2 |
| On-State Resistance | 6R |
| Operating Supply Current | 30uA |
| Operating Supply Voltage | 3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 30uA |
| Supply Type | Single |
| Turn-Off Delay Time | 12ns |
| Turn-On Delay Time | 30ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TS3USB221ARSERG4 Datasheet
Download the complete datasheet for Texas Instruments TS3USB221ARSERG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

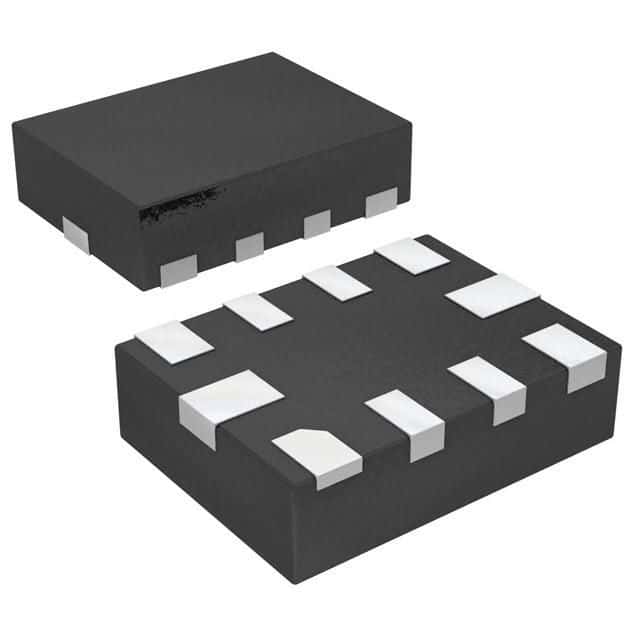

Product Images
