Texas Instruments
TS5A3359DCUT
1-Ω, 5-V, 3:1 (SP3T), 1-channel analog multiplexer 8-VSSOP -40 to 85
PackageVSSOP
Current16nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TS5A3359DCUT technical specifications.
General
-3db Bandwidth
75MHz
Package/Case
VSSOP
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
50nA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Inputs
1
Number of Outputs
3
On-State Resistance
900mR
Operating Supply Current
16nA
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
16nA
Supply Type
Single
Weight
0.000339oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TS5A3359DCUT Datasheet
Download the complete datasheet for Texas Instruments TS5A3359DCUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

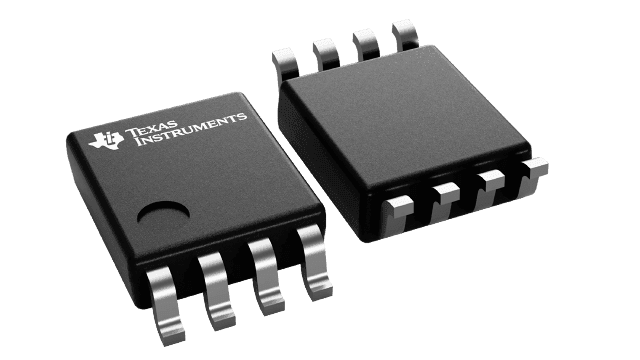

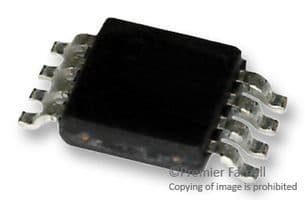

Product Images
