The TSB41BA3ATPFPEP is a 6-channel non-inverting transceiver from Texas Instruments, packaged in a 96-unit HTQFP tray. It operates over a temperature range of -40°C to 110°C and is RoHS compliant. The device has a maximum supply voltage of 3.6V and a minimum supply voltage of 3V, with a supply current of 75mA. It is designed for surface mount applications and has a data rate of 400Mbps.
PackageHTQFP
Current75mA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments TSB41BA3ATPFPEP technical specifications.
General
| Package/Case | HTQFP |
| Data Rate | 400Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Receivers | 6 |
| Number of Transmitters | 6 |
| Package Quantity | 96 |
| Packaging | Tray |
| Polarity | Non-Inverting |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 75mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TSB41BA3ATPFPEP Datasheet
Download the complete datasheet for Texas Instruments TSB41BA3ATPFPEP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

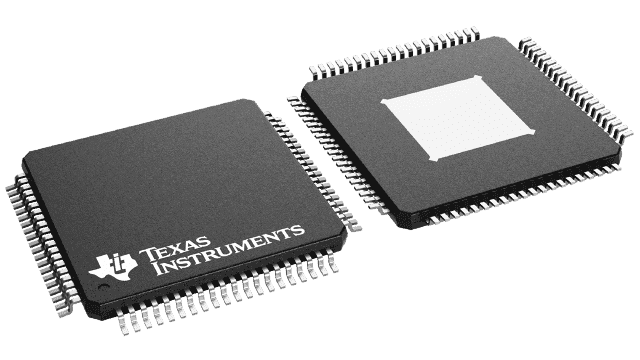

Product Images
