The TSB83AA23ZAY is a 32-bit interface IC with a data rate of 800Mbps, supporting both PCI and serial interfaces. It operates within a temperature range of 0°C to 70°C and is supplied with a voltage of 3.3V, drawing an operating current of 120mA. The IC is packaged in a BGA package and is compliant with RoHS regulations.
PackageBGA
Current91mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TSB83AA23ZAY technical specifications.
General
| Package/Case | BGA |
| Data Bus Width | 32b |
| Data Rate | 800Mbps |
| Interface | PCI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Timers/Counters | 1 |
| Operating Supply Current | 120mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 160 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 91mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TSB83AA23ZAY Datasheet
Download the complete datasheet for Texas Instruments TSB83AA23ZAY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

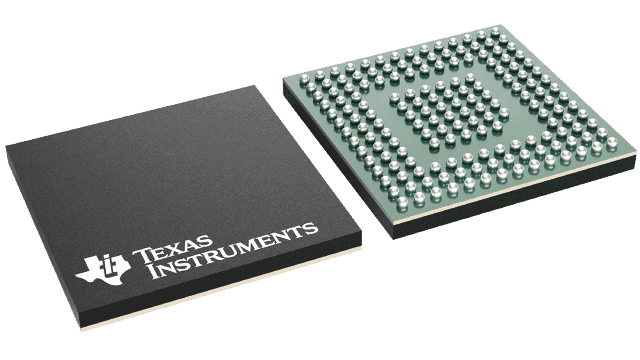

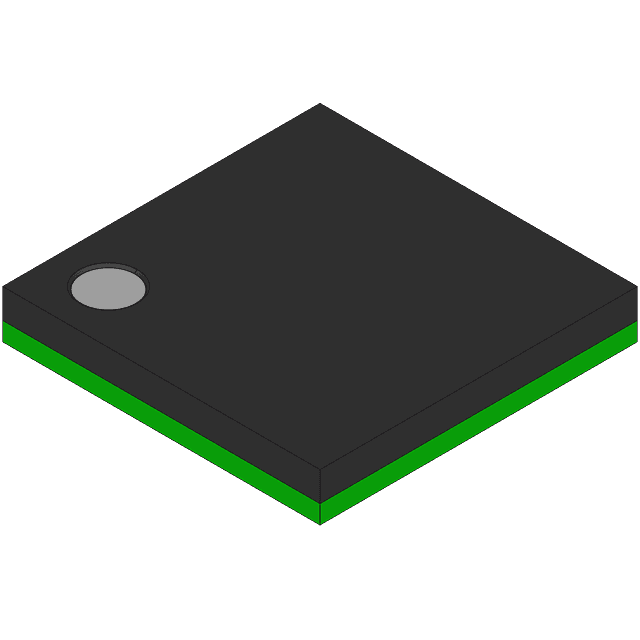

Product Images
