Texas Instruments
TSC2046IZQCR
4-Wire Touch Screen Controller with low voltage digital I/O 48-BGA MICROSTAR JUNIOR -40 to 85
PackageVFBGA
Current280uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TSC2046IZQCR technical specifications.
General
Package/Case
VFBGA
Interface
SPI, 3-WIRE
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Bits
12
Number of Channels
6
Operating Supply Current
780uA
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Supply Current
280uA
Weight
0.001185oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TSC2046IZQCR Datasheet
Download the complete datasheet for Texas Instruments TSC2046IZQCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

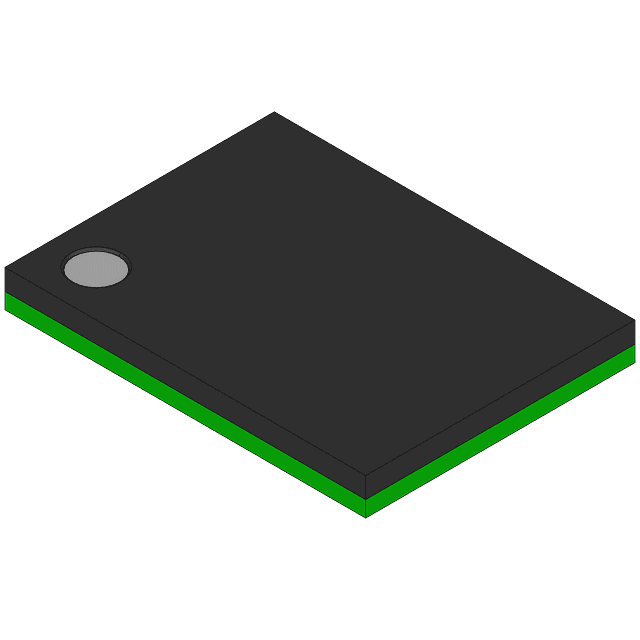

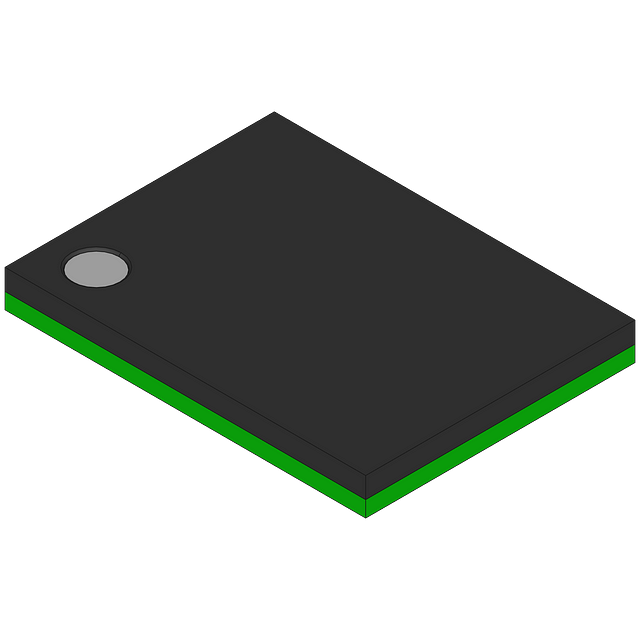

Product Images
