The TSC2046IZQCR-90 is a 12-bit SPI interface IC from Texas Instruments, operating over a temperature range of -40°C to 85°C. It is available in a VFBGA package, suitable for surface mount applications. The device is RoHS compliant and has a maximum supply voltage of 5.25V and a minimum supply voltage of 2.2V. The IC has a low operating supply current of 780uA and a resolution of 12 bits. It is packaged on a tape and reel for easy handling.
PackageVFBGA
Current280uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TSC2046IZQCR-90 technical specifications.
General
| Package/Case | VFBGA |
| Interface | SPI, 3-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.2V |
| Mount | Surface Mount |
| Number of Bits | 12 |
| Operating Supply Current | 780uA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Supply Current | 280uA |
| Weight | 0.001185oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TSC2046IZQCR-90 Datasheet
Download the complete datasheet for Texas Instruments TSC2046IZQCR-90 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

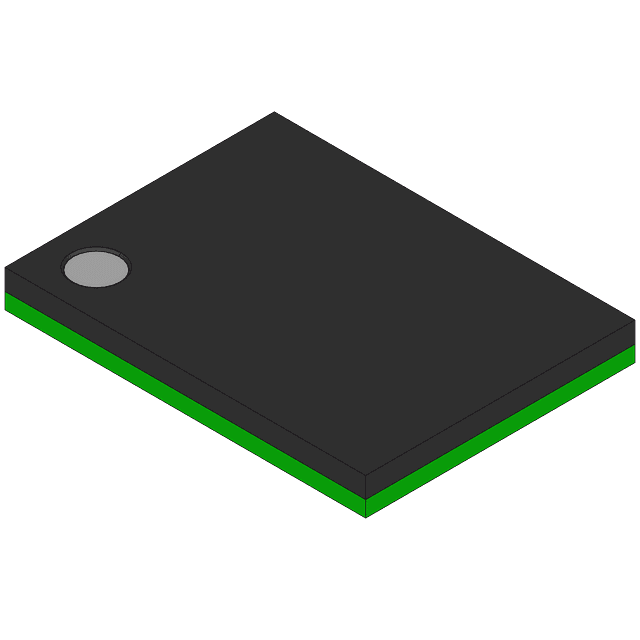

Product Images
