Texas Instruments
TSC2100IDA
4-Wire Touch Screen Controller with Stereo DAC / Mono ADC with HP/Speaker Amplifier 32-TSSOP -40 to 85
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TSC2100IDA technical specifications.
General
Package/Case
TSSOP
Interface
SPI, Serial, I2S, 4-WIRE
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
12
Operating Supply Current
780uA
Output Voltage
3.6V
Package Quantity
46
Packaging
Rail/Tube
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Weight
0.006113oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TSC2100IDA Datasheet
Download the complete datasheet for Texas Instruments TSC2100IDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

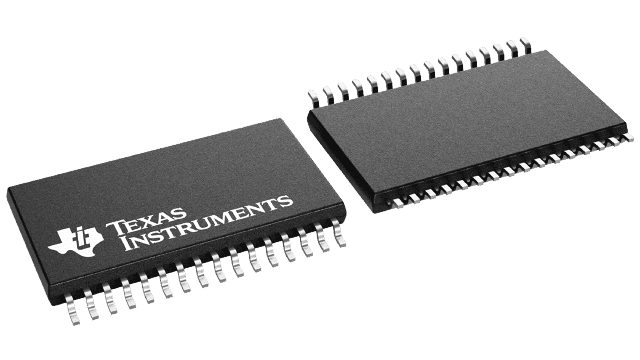

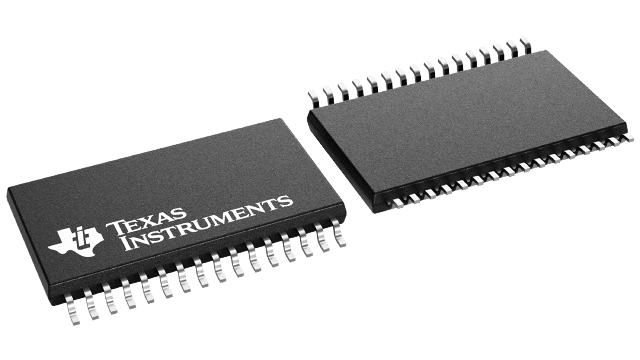

Product Images
