Texas Instruments
TSC2102IDA
4-Wire Touch Screen Controller with Stereo DAC with HP Amplifier 32-TSSOP -40 to 85
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TSC2102IDA technical specifications.
General
| Package/Case | TSSOP |
| Interface | SPI, Serial, I2S, 4-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Operating Supply Current | 65uA |
| Output Voltage | 3.6V |
| Package Quantity | 46 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Weight | 0.006113oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TSC2102IDA Datasheet
Download the complete datasheet for Texas Instruments TSC2102IDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

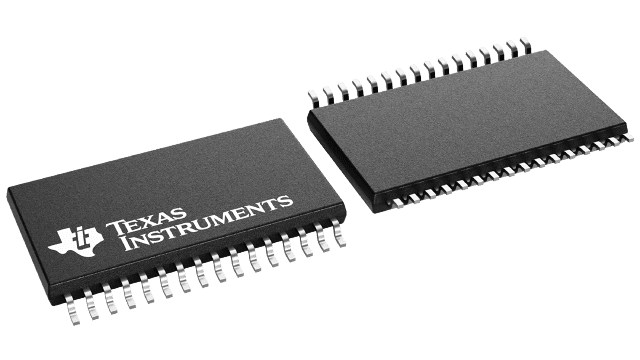

Product Images
