Texas Instruments
TSC2117IRGZR
4-Wire Touch Screen Controller with Low-Power Mono ADC/Stereo DAC 48-VQFN -40 to 85
PackageVQFN
Current4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TSC2117IRGZR technical specifications.
General
Package/Case
VQFN
Interface
I2C, SPI, Serial, I2S, 2-Wire, 4-WIRE
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.1V
Mount
Surface Mount
Number of A/D Converters
2
Number of Bits
12
Number of D/A Converters
2
Operating Supply Voltage
3.3V
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
96KS/s
Supply Current
4mA
Type
General Purpose
Weight
0.004868oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TSC2117IRGZR Datasheet
Download the complete datasheet for Texas Instruments TSC2117IRGZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

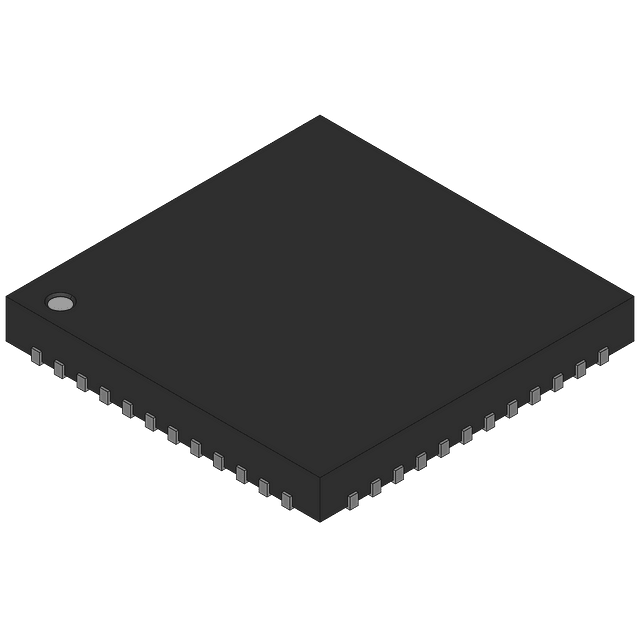

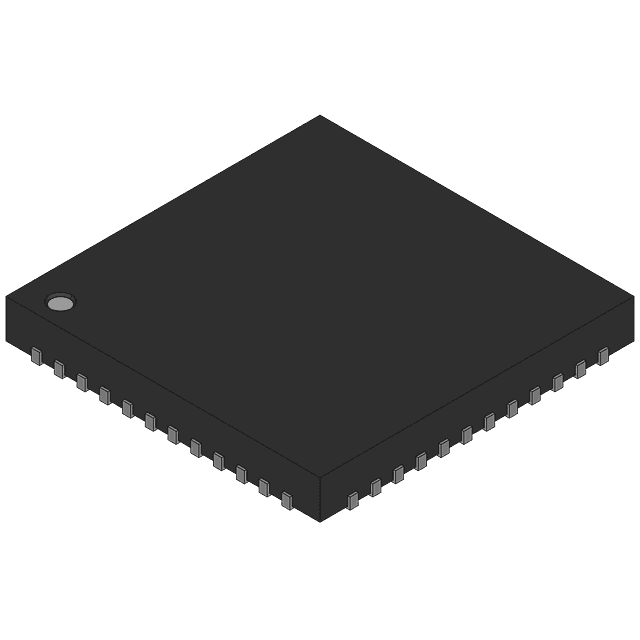

Product Images
