Texas Instruments
TSC2200IRHBR
Programmable 4-Wire Touch Screen Controller with 12-Bit 125KHz ADC and Keypad Interface 32-VQFN -40 to 85
PackageVQFN
Current2.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TSC2200IRHBR technical specifications.
General
Package/Case
VQFN
Interface
SPI, Serial, 4-WIRE
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
12
Number of Channels
1
Operating Supply Current
1.25mA
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Supply Current
2.5mA
Weight
0.002547oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TSC2200IRHBR Datasheet
Download the complete datasheet for Texas Instruments TSC2200IRHBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

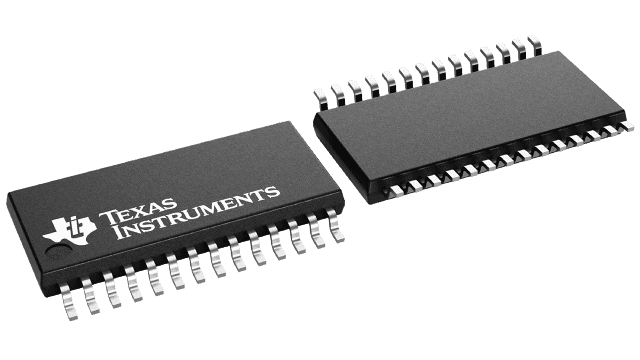

Product Images
