4-port USB 1.1 hub controller supporting low-speed (1.5Mbps) and full-speed (12Mbps) data rates. Features 5 transceivers and operates from a 3.3V supply voltage with a maximum of 3.6V. Includes integrated ESD protection and is RoHS compliant. Packaged in a 32-pin VQFN with tape and reel packaging, suitable for surface mount termination.
PackageVQFN
Current40mA
Quick Jump:
Technical Specifications
Texas Instruments TUSB2046BIRHBT technical specifications.
General
Package/Case
VQFN
Data Rate
12Mbps
ESD Protection
Yes
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3.3V
Number of Ports
4
Number of Transceivers
5
Operating Supply Current
40mA
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
40mA
Termination
SMD/SMT
Thickness
900um
USB Standard
USB 1.1
Weight
0.002533oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TUSB2046BIRHBT Datasheet
Download the complete datasheet for Texas Instruments TUSB2046BIRHBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

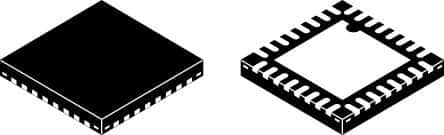

Product Images
