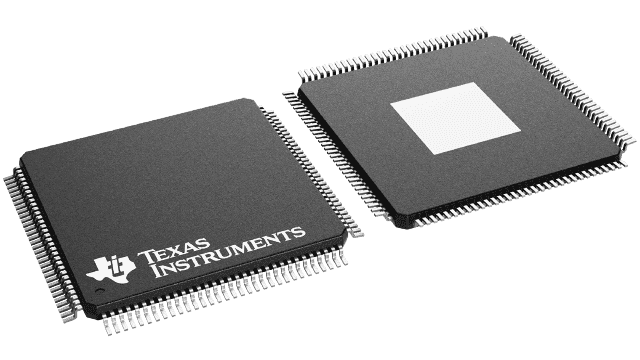

The TVP5158PNP is a 10-bit 4-channel 5-ADC video processing IC from Texas Instruments. It operates over a temperature range of 0°C to 70°C and is supplied with a voltage between 1.65V and 1.95V. The IC is packaged in a lead-free HTQFP package and is RoHS compliant. It is designed for surface mount applications and is available in a tray packaging with 90 units per package.
Sign in to ask questions about the Texas Instruments TVP5158PNP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments TVP5158PNP technical specifications.
| Package/Case | HTQFP |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.95V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of A/D Converters | 5 |
| Number of Bits | 10 |
| Number of Channels | 4 |
| Package Quantity | 90 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments TVP5158PNP to view detailed technical specifications.
