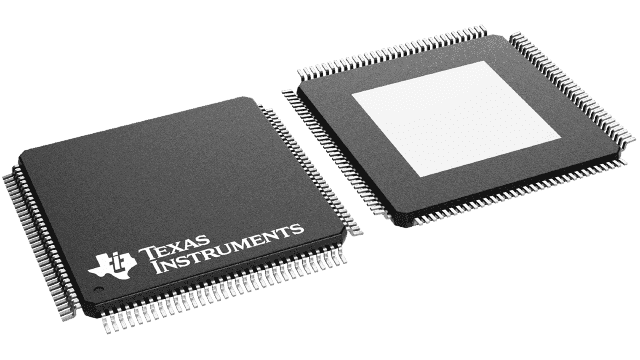

Dual-channel, 10-bit video decoder IC featuring 2 analog-to-digital converters with a 60MS/s sampling rate. This surface-mount component operates within a 3V to 3.6V supply voltage range, consuming 205mA of supply current. Housed in a 128-pin HTQFP package, it offers 11-bit resolution and a maximum power dissipation of 904mW. Designed for analog input formats, this RoHS-compliant integrated circuit operates between 0°C and 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TVP5160PNP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments TVP5160PNP technical specifications.
| Package/Case | HTQFP |
| Height | 1mm |
| Input Format | Analog |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 904mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Bits | 10 |
| Number of Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Packaging | Tray |
| Power Dissipation | 904mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 11b |
| RoHS Compliant | Yes |
| Sampling Rate | 60MS/s |
| Supply Current | 205mA |
| Termination | SMD/SMT |
| Weight | 0.017524oz |
| Width | 14mm |
| RoHS | Compliant |
