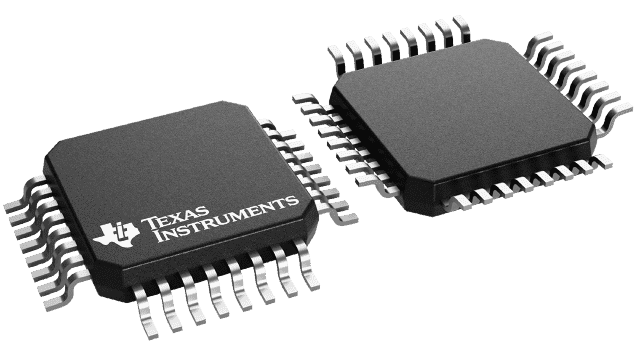

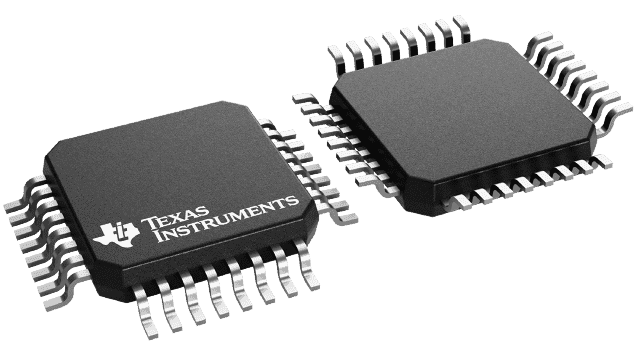

The TWL1103TPBSQ1 is a 15-bit audio analog-to-digital converter (ADC) with I2C and SPI interfaces. It operates over a temperature range of -40°C to 105°C and is supplied with a voltage between 2.7V and 3.3V. The device is packaged in a lead-free TQFP package and is compliant with RoHS regulations. It has a sampling rate of 8KS/s and a resolution of 15 bits.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TWL1103TPBSQ1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TQFP |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 2.7V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 2 |
| Number of Analog Outputs | 2 |
| Number of Bits | 15 |
| Number of Channels | 1 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 0 |
| Operating Supply Voltage | 3V |
| Package Quantity | 1 |
| Packaging | Tray |
| Radiation Hardening | No |
| Resolution | 15b |
| RoHS Compliant | Yes |
| Sampling Rate | 8KS/s |
| Series | VBAP™ |
| Weight | 0.002512oz |
| RoHS | Compliant |
