4-channel bidirectional voltage level translator, ideal for logic applications. Features a 1.2V to 5.5V operating supply range and supports data rates up to 100Mbps. This surface mount component is housed in a 14-pin TSSOP package with 3-state output capability. Operating temperature range is -40°C to 85°C, with a propagation delay of 31ns.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TXB0104PWR technical specifications.
General
Package/Case
TSSOP
Channel Type
Bidirectional
Data Rate
100Mbps
Height
1.15mm
High Level Output Current
-20uA
Lead Free
Lead Free
Length
5mm
Logic Function
Translator
Low Level Output Current
20uA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Min Supply Voltage (DC)
1.2V
Max Supply Voltage
5.5V
Min Supply Voltage
1.2V
Mount
Surface Mount
Nominal Supply Current
5uA
Number of Bits
4
Number of Circuits
1
Number of Inputs
4
Number of Outputs
4
Output Current
20uA
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Propagation Delay
31ns
Quiescent Current
3.5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
1mm
Turn-On Delay Time
7.4ns
Weight
0.002018oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TXB0104PWR Datasheet
Download the complete datasheet for Texas Instruments TXB0104PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

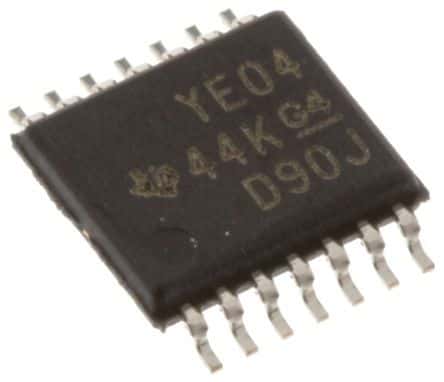

Product Images
