8-channel bidirectional voltage level translator supporting 1.2V to 5.5V supply voltages. Features 100Mbps data rate, 9.5ns propagation delay, and 3-state output type. This surface mount integrated circuit operates within a -40°C to 85°C temperature range and is RoHS compliant. Packaged in a 20-pin VQFN EP on tape and reel.
PackageVQFN EP
Current10uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TXB0108RGYR technical specifications.
General
Package/Case
VQFN EP
Channel Type
Bidirectional
Data Rate
100Mbps
High Level Output Current
-20uA
Lead Free
Lead Free
Logic Function
Translator
Low Level Output Current
20uA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
1
Number of Inputs
8
Output Current
20uA
Output Type
3-STATE
Package Quantity
3000
Packaging
Tape and Reel
Propagation Delay
9.5ns
Quiescent Current
3.5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
10uA
Termination
SMD/SMT
Turn-On Delay Time
35.6ns
Weight
0.001517oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TXB0108RGYR Datasheet
Download the complete datasheet for Texas Instruments TXB0108RGYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

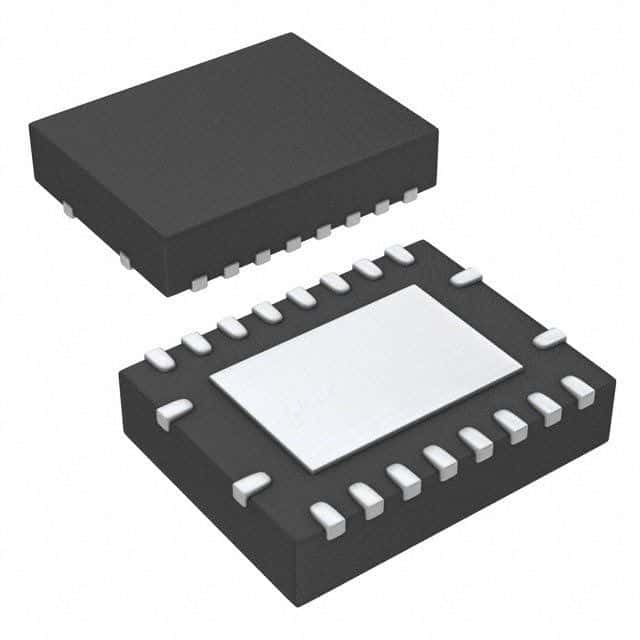

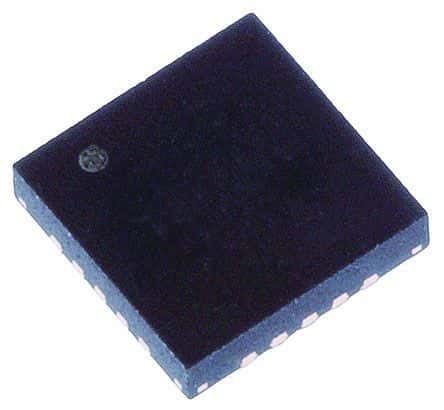

Product Images
