2-bit bidirectional voltage-level shifter supporting open-drain and push-pull applications. Features a 24Mbps data rate and 1.65V to 5.5V operating voltage range. Delivers 1mA low-level output current and -20uA high-level output current. Packaged in an 8-VSSOP with dimensions of 2.3mm x 2mm x 900um. Operates across a temperature range of -40°C to 85°C.
PackageVSSOP
Quick Jump:
Technical Specifications
Texas Instruments TXS0102DCUR technical specifications.
General
Package/Case
VSSOP
Channel Type
Bidirectional
Data Rate
24Mbps
Height
900um
High Level Output Current
-20uA
Lead Free
Lead Free
Length
2.3mm
Logic Function
Translator
Low Level Output Current
1mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Nominal Supply Current
14.4uA
Number of Bits
2
Number of Channels
2
Number of Circuits
1
Number of Inputs
2
Number of Outputs
2
Output Current
1A
Package Quantity
3000
Packaging
Tape and Reel
Propagation Delay
4.6ns
Quiescent Current
14.4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
850um
Turn-On Delay Time
260ns
Weight
0.000339oz
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TXS0102DCUR Datasheet
Download the complete datasheet for Texas Instruments TXS0102DCUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

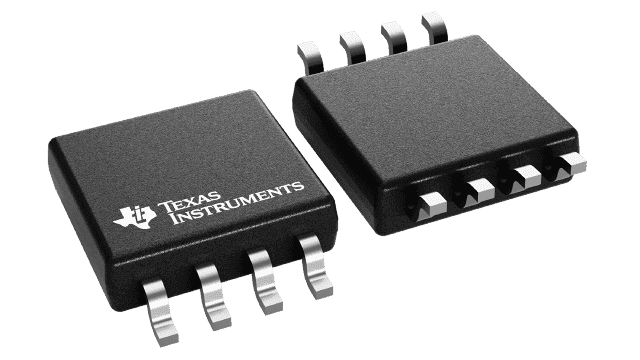

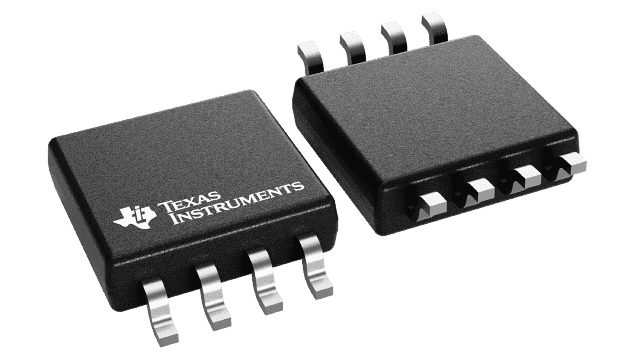

Product Images
