2-Bit Bidirectional Voltage-Level Shifter, designed for open-drain and push-pull applications. Features a 24Mbps data rate and operates across a wide temperature range of -40°C to 85°C. Supports supply voltages from 1.65V to 5.5V with a low quiescent current of 14.4µA. This surface-mount component offers a propagation delay of 4.6ns and is packaged in tape and reel.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TXS0102DQMR technical specifications.
General
| Channel Type | Bidirectional |
| Data Rate | 24Mbps |
| Height | 0.35mm |
| High Level Output Current | -20uA |
| Lead Free | Lead Free |
| Length | 1.85mm |
| Logic Function | Translator |
| Low Level Output Current | 1mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Nominal Supply Current | 14.4uA |
| Number of Bits | 2 |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Number of Outputs | 2 |
| Output Type | Voltage |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 4.6ns |
| Quiescent Current | 14.4uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Thickness | 370um |
| Turn-On Delay Time | 260ns |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TXS0102DQMR Datasheet
Download the complete datasheet for Texas Instruments TXS0102DQMR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

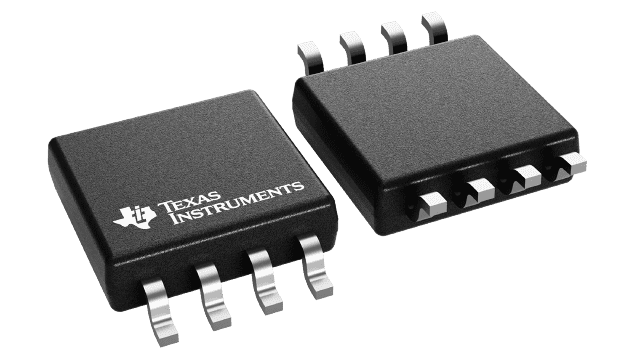

Product Images
