Adjustable positive linear voltage regulator, featuring a 150mA output current capability and a maximum input voltage of 40V. This integrated circuit offers an adjustable output voltage range from 2V to 37V with 10% accuracy. Operating within a 0°C to 70°C temperature range, it provides a 7.5V reference voltage and a Power Supply Rejection Ratio of 86dB. Packaged in a 14-SOIC (D) case, this lead-free and RoHS compliant component is supplied in rail/tube packaging.
PackageD
Current Rating150mA
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments UA723CD technical specifications.
General
Accuracy
10%
Package/Case
D
Current Rating
150mA
Lead Free
Lead Free
Max Input Voltage
40V
Min Input Voltage
9.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
150mA
Max Output Voltage
37V
Min Output Voltage
2V
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Adjustable
Output Voltage
37V
Output Voltage Accuracy
10%
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
86dB
Quiescent Current
4mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
7.5V
RoHS Compliant
Yes
Weight
0.004564oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UA723CD Datasheet
Download the complete datasheet for Texas Instruments UA723CD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

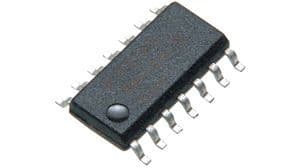

Product Images
