Adjustable linear voltage regulator, 150mA output current, 40V maximum input voltage, and 37V maximum output voltage. Features a 7.5V reference voltage with 10% accuracy and a 150mA maximum output current. Operates within a 0°C to 70°C temperature range, housed in a 14-PDIP package. This positive polarity regulator offers a 86dB Power Supply Rejection Ratio and 4mA quiescent current.
PackageN
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments UA723CN technical specifications.
General
Accuracy
10%
Package/Case
N
Height
4.57mm
Lead Free
Lead Free
Length
19.3mm
Max Input Voltage
40V
Min Input Voltage
9.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
150mA
Max Output Voltage
37V
Min Output Voltage
2V
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Adjustable
Output Voltage
37V
Output Voltage Accuracy
10%
Package Quantity
25
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
86dB
Quiescent Current
4mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
7.5V
RoHS Compliant
Yes
Series
UA723
Weight
0.032734oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UA723CN Datasheet
Download the complete datasheet for Texas Instruments UA723CN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

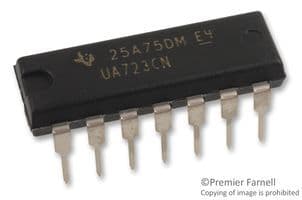

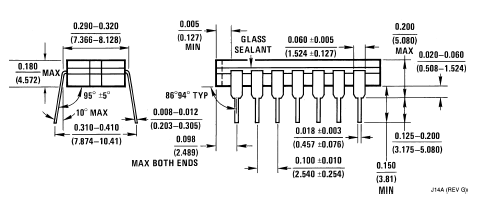

Product Images
