General-purpose operational amplifier featuring a 1MHz bandwidth and 1MHz gain bandwidth product. This single-channel IC offers a voltage gain of 106.02dB and a slew rate of 0.5V/µs. Operating within a 3.5V to 18V dual supply range, it exhibits a typical supply current of 1.7mA and a maximum power dissipation of 500mW. The 8-PDIP package has dimensions of 9.81mm length, 6.35mm width, and 4.57mm height, with a thickness of 3.9mm.
PackageP
Current2.8mA
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments UA741CP technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
P
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
1MHz
Height
4.57mm
Input Bias Current
800nA
Input Offset Voltage (Vos)
6mV
Lead Free
Lead Free
Length
9.81mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
3.5V
Max I/O Voltage
6mV
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
500mW
Max Supply Current
2.8mA
Nominal Gain Bandwidth Product
1MHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1.7mA
Operating Supply Voltage
18V
Output Current per Channel
25mA
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
500mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.5V/µs
Supply Current
2.8mA
Technology
BIPOLAR
Thickness
3.9mm
Type
General Purpose
Unity Gain Bandwidth Product
1MHz
Voltage Gain
106.02dB
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UA741CP Datasheet
Download the complete datasheet for Texas Instruments UA741CP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

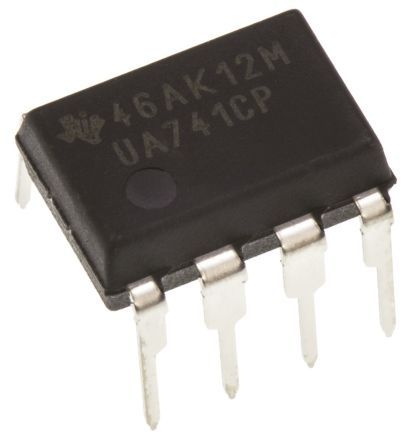

Product Images
