12V positive fixed linear voltage regulator, delivering up to 100mA output current with 5% accuracy. Features a 1.7V dropout voltage and a maximum input voltage of 27V, operating from 14.5V to 27V. Housed in a 3-SOT-89 package with dimensions of 4.5mm (L) x 2.5mm (W) x 1.5mm (H). Operates across a wide temperature range of -40°C to 125°C, with a PSRR of 42dB and 6mA quiescent current. RoHS compliant and lead-free.
PackageSOT-89
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments UA78L12ACPKG3 technical specifications.
General
Accuracy
5%
Package/Case
SOT-89
Dropout Voltage
1.7V
Height
1.5mm
Lead Free
Lead Free
Length
4.5mm
Max Input Voltage
27V
Min Input Voltage
14.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
12V
Min Output Voltage
12V
Nominal Output Voltage
12V
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
12V
Output Voltage Accuracy
5%
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
42dB
Quiescent Current
6mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
UA78L12A
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UA78L12ACPKG3 Datasheet
Download the complete datasheet for Texas Instruments UA78L12ACPKG3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

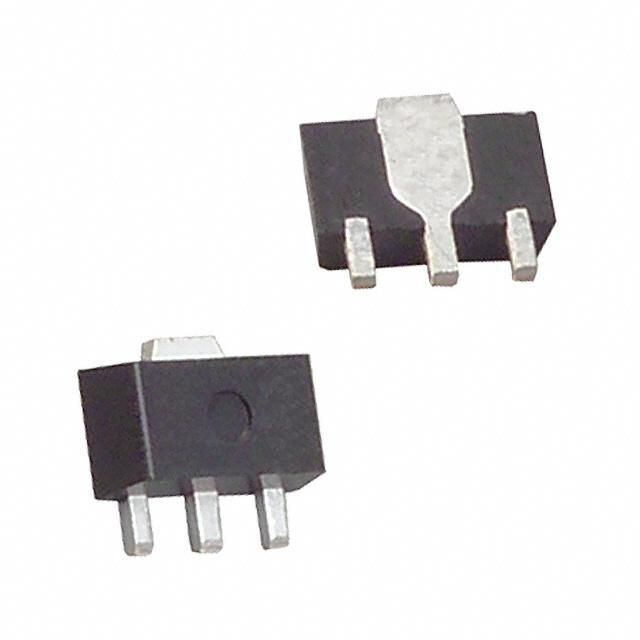

Product Images
