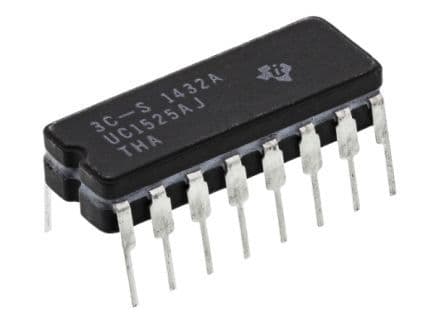

The UC1525AJ is a DC/DC controller from Texas Instruments, available in a DIP16 package. It operates within a temperature range of -55°C to 125°C and has a maximum supply voltage of 35V. The device can handle an output current of 400A and has a maximum duty cycle of 49%. The UC1525AJ is not RoHS compliant and contains lead, making it a non-lead-free component.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments UC1525AJ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | J |
| Duty Cycle | 49% |
| Fall Time | 50ns |
| Height | 3.56mm |
| Lead Free | Contains Lead |
| Length | 21.34mm |
| Max Duty Cycle | 49% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 35V |
| Output Current | 400A |
| Output Voltage | 5.15V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Topology | Boost, Flyback, Push-Pull |
| Width | 7.62mm |
| RoHS | Not CompliantNo |
