Complementary high current MOSFET driver featuring a single channel and output. Delivers up to 6A output current with a 30ns propagation delay and 80ns fall time. Operates from a 4.7V to 18V supply voltage and offers a maximum power dissipation of 3W. Packaged in a TO-220-5 through-hole mount, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageTO-220-5
Current35mA
MountingThrough Hole
Power3W
Quick Jump:
Technical Specifications
Texas Instruments UC2710TG3 technical specifications.
General
Package/Case
TO-220-5
Fall Time
80ns
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
6A
Max Power Dissipation
3W
Max Supply Current
35mA
Max Supply Voltage
18V
Min Supply Voltage
4.7V
Mount
Through Hole
Number of Channels
1
Number of Drivers
1
Number of Outputs
1
Output Current
6A
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
3W
Propagation Delay
30ns
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
35mA
Turn-On Delay Time
30ns
Weight
0.068079oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UC2710TG3 Datasheet
Download the complete datasheet for Texas Instruments UC2710TG3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

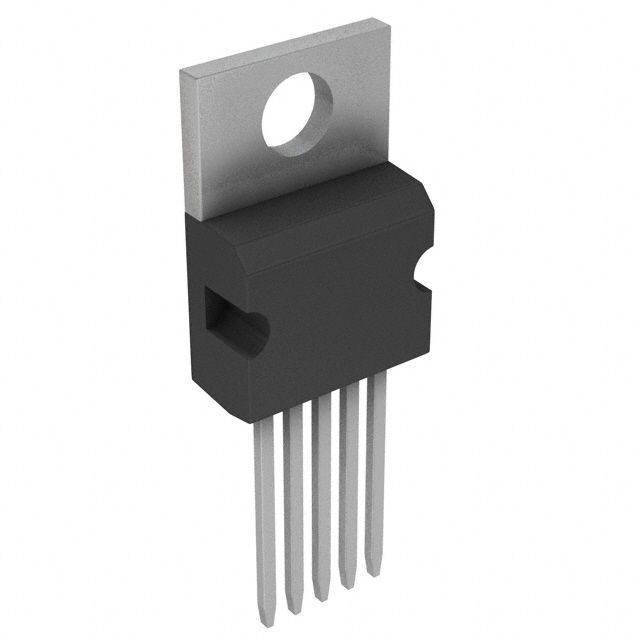

Product Images
