Technical Specifications
Texas Instruments UC2825AQ technical specifications.
General
Package/Case
PLCC
Duty Cycle
50%
Fall Time
20ns
Lead Free
Lead Free
Max Duty Cycle
50%
Max Frequency
1.1MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
22V
Number of Outputs
2
Output Current
2kA
Output Voltage
2V
Package Quantity
46
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Topology
Boost, Flyback, Push-Pull
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UC2825AQ Datasheet
Download the complete datasheet for Texas Instruments UC2825AQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

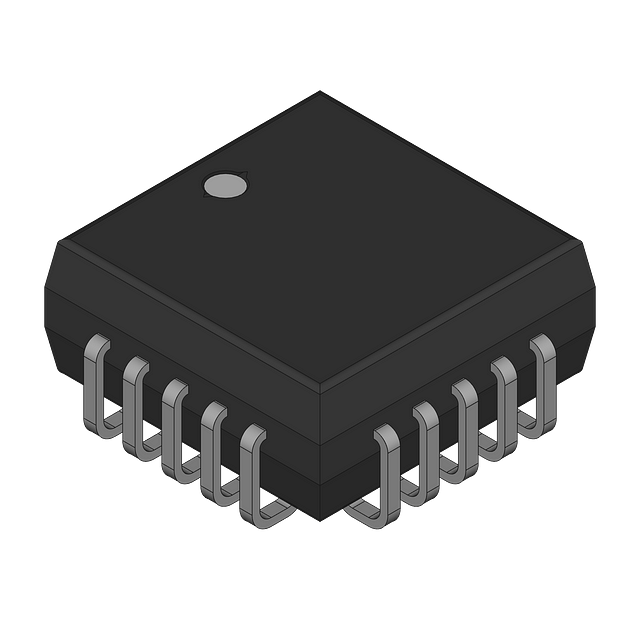

Product Images
