Texas Instruments
UC2846DWTR
Dual ended 500KHz current mode PWM controller, -40C to 85C 16-SOIC -40 to 85
Frequency500kHz
PackageSOIC
Quick Jump:
Technical Specifications
Texas Instruments UC2846DWTR technical specifications.
General
Package/Case
SOIC
Clock Sync
Yes
Duty Cycle
50%
Fall Time
50ns
Lead Free
Lead Free
Max Duty Cycle
50%
Max Frequency
500kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
40V
Number of Output Phases
1
Number of Outputs
2
Output Configuration
Positive
Output Current
500mA
Output Voltage
13.5V
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Topology
Boost, Flyback, Push-Pull
Weight
0.016709oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UC2846DWTR Datasheet
Download the complete datasheet for Texas Instruments UC2846DWTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

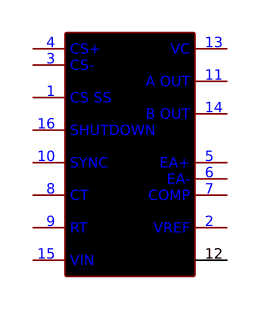

Product Images
