The UC2875DWPTR is a DC/DC controller from Texas Instruments with a maximum supply voltage of 20V and a maximum frequency of 1MHz. It features a package type of SOP28 and is available in a tape and reel packaging with 1000 units per package. The device is RoHS compliant and has a maximum operating temperature range of -25°C to 85°C. It is designed for surface mount applications and has a maximum output current of 500mA.
Frequency1MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UC2875DWPTR technical specifications.
General
| Package/Case | SOIC |
| Duty Cycle | 100% |
| Lead Free | Lead Free |
| Max Frequency | 1MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 20V |
| Mount | Surface Mount |
| Number of Outputs | 4 |
| Output Current | 500mA |
| Output Voltage | 1.7V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | UC2875 |
| Weight | 0.027937oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UC2875DWPTR Datasheet
Download the complete datasheet for Texas Instruments UC2875DWPTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

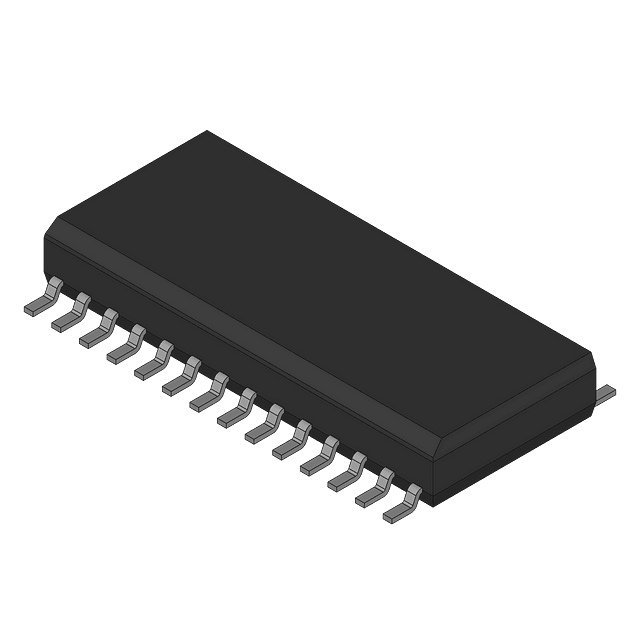

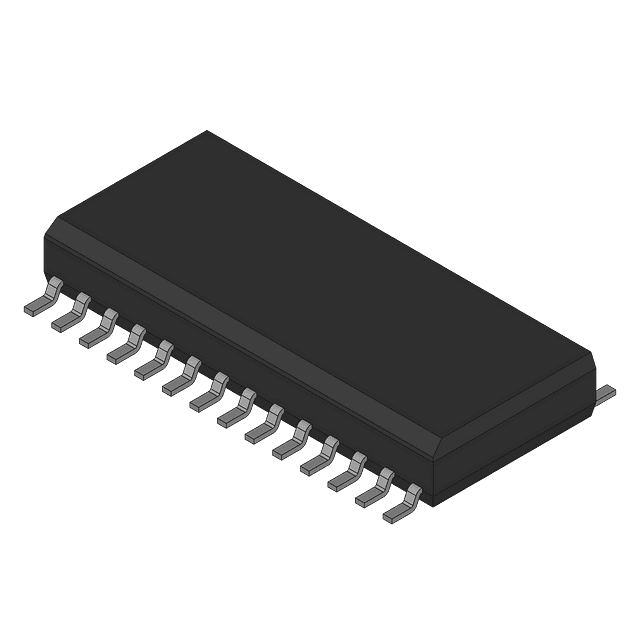

Product Images
