Linear lead-acid battery charger IC in a 16-SOIC package. Features a maximum supply voltage of 40V and an output current of 40mA. Operates across a temperature range of -40°C to 70°C. This RoHS compliant component is lead-free and measures 10.28mm in length, 7.52mm in width, and 2.35mm in height.
PackageSOIC
Quick Jump:
Technical Specifications
Texas Instruments UC2906DW technical specifications.
General
| Battery Type | LEAD-ACID |
| Package/Case | SOIC |
| Height | 2.35mm |
| Lead Free | Lead Free |
| Length | 10.28mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 40V |
| Output Current | 40mA |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Weight | 0.016709oz |
| Width | 7.52mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UC2906DW Datasheet
Download the complete datasheet for Texas Instruments UC2906DW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

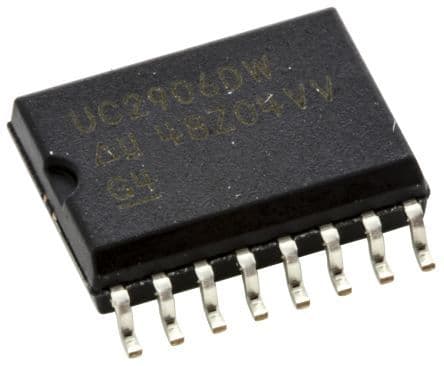

Product Images
