Texas Instruments
UC3526AQ
0.2A SWITCHING CONTROLLER, 600kHz SWITCHING FREQ-MAX, PQCC20, PLASTIC, LCC-20
PackagePLCC
Quick Jump:
Technical Specifications
Texas Instruments UC3526AQ technical specifications.
General
Package/Case
PLCC
Clock Sync
Yes
Duty Cycle
49%
Fall Time
100ns
Lead Free
Contains Lead
Max Duty Cycle
49%
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
35V
Number of Output Phases
1
Number of Outputs
2
Output Configuration
Positive
Output Current
100mA
Output Voltage
13V
Package Quantity
46
Packaging
Rail/Tube
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Topology
Flyback, Push-Pull
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UC3526AQ Datasheet
Download the complete datasheet for Texas Instruments UC3526AQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

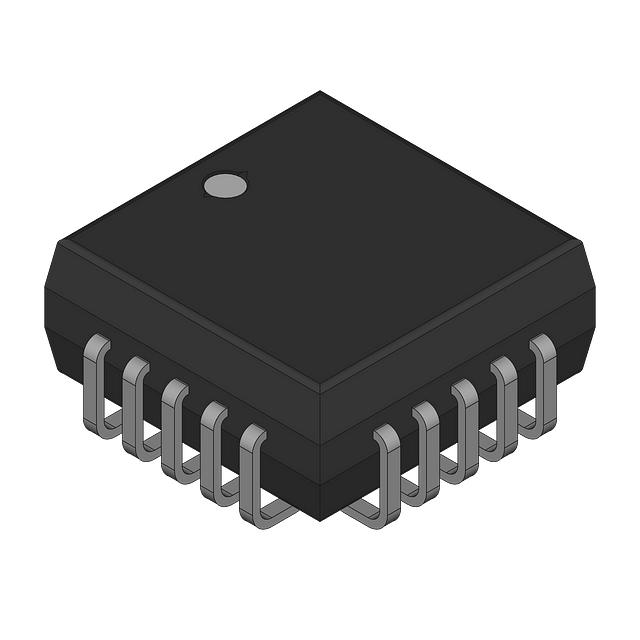

Product Images
