The UC3854NG4 is a DC/DC controller with a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. It operates at a frequency of 200kHz and has a maximum supply voltage of 35V and a minimum supply voltage of 15V. The device is packaged in a DIP-16 package and is RoHS compliant. It is available in a package quantity of 25 and is packaged in a rail/tube format.
Frequency200kHz
PackageN
Quick Jump:
Technical Specifications
Texas Instruments UC3854NG4 technical specifications.
General
| Package/Case | N |
| Frequency | 200kHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 35V |
| Min Supply Voltage | 15V |
| Operating Supply Current | 10mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 0.037172oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UC3854NG4 Datasheet
Download the complete datasheet for Texas Instruments UC3854NG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

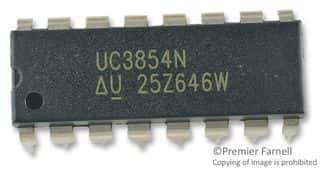

Product Images
