Texas Instruments
UCC2583QTR
Switch mode Secondary side Post Regulator with -40°C to 85°C 20-PLCC -40 to 85
Frequency500kHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCC2583QTR technical specifications.
General
Package/Case
PLCC
Duty Cycle
100%
Lead Free
Lead Free
Max Duty Cycle
95%
Max Frequency
500kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Outputs
1
Output Current
150mA
Output Voltage
600mV
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
UCC2583
Weight
0.025468oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UCC2583QTR Datasheet
Download the complete datasheet for Texas Instruments UCC2583QTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

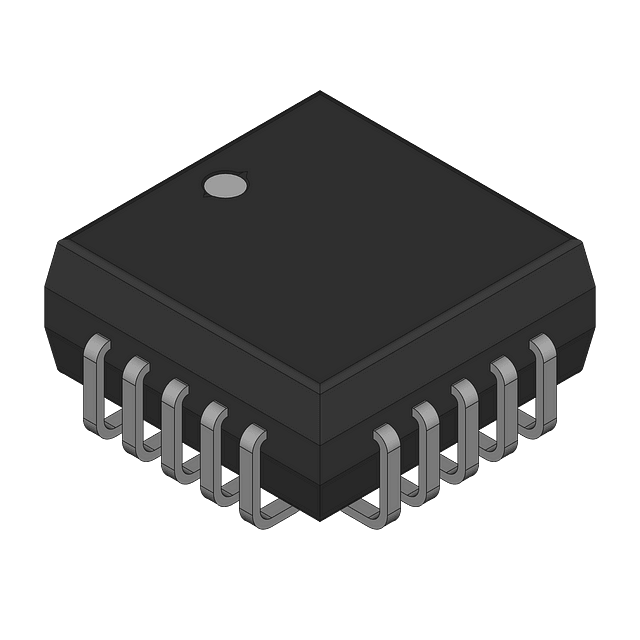

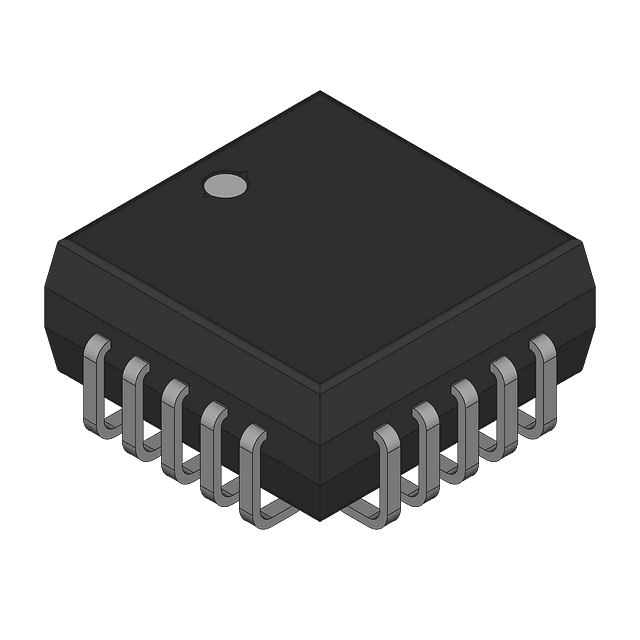

Product Images
