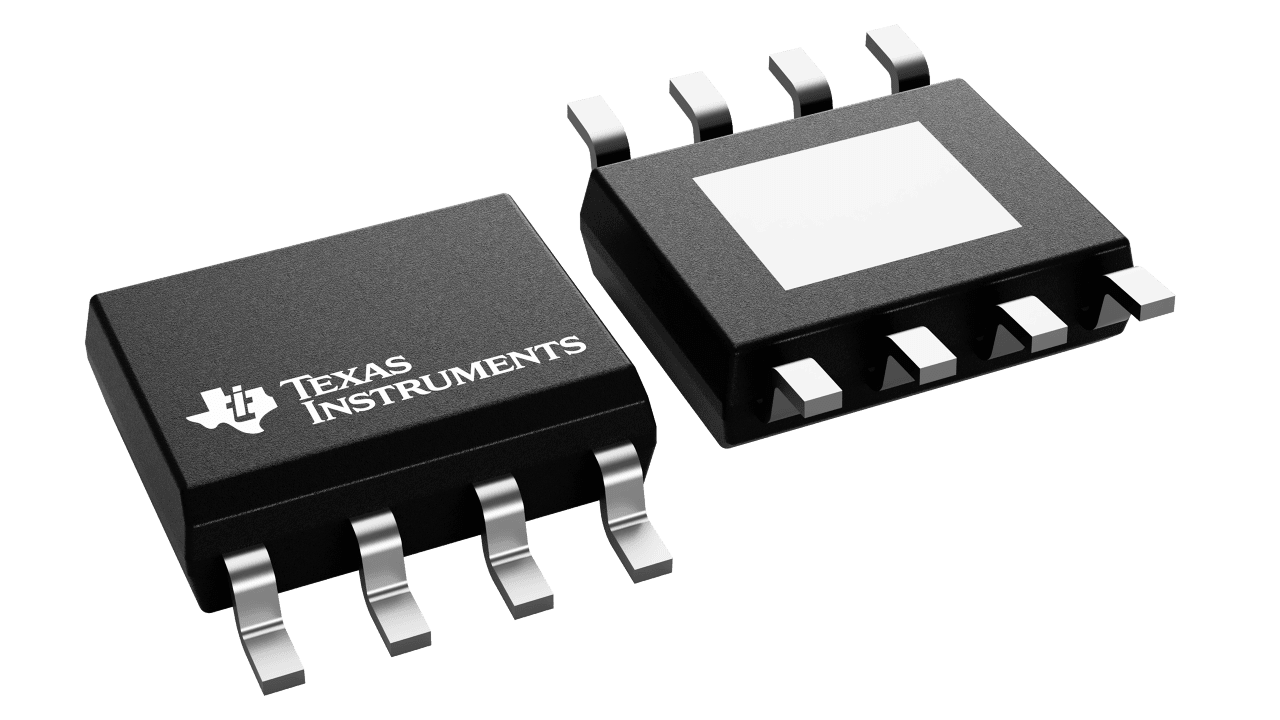

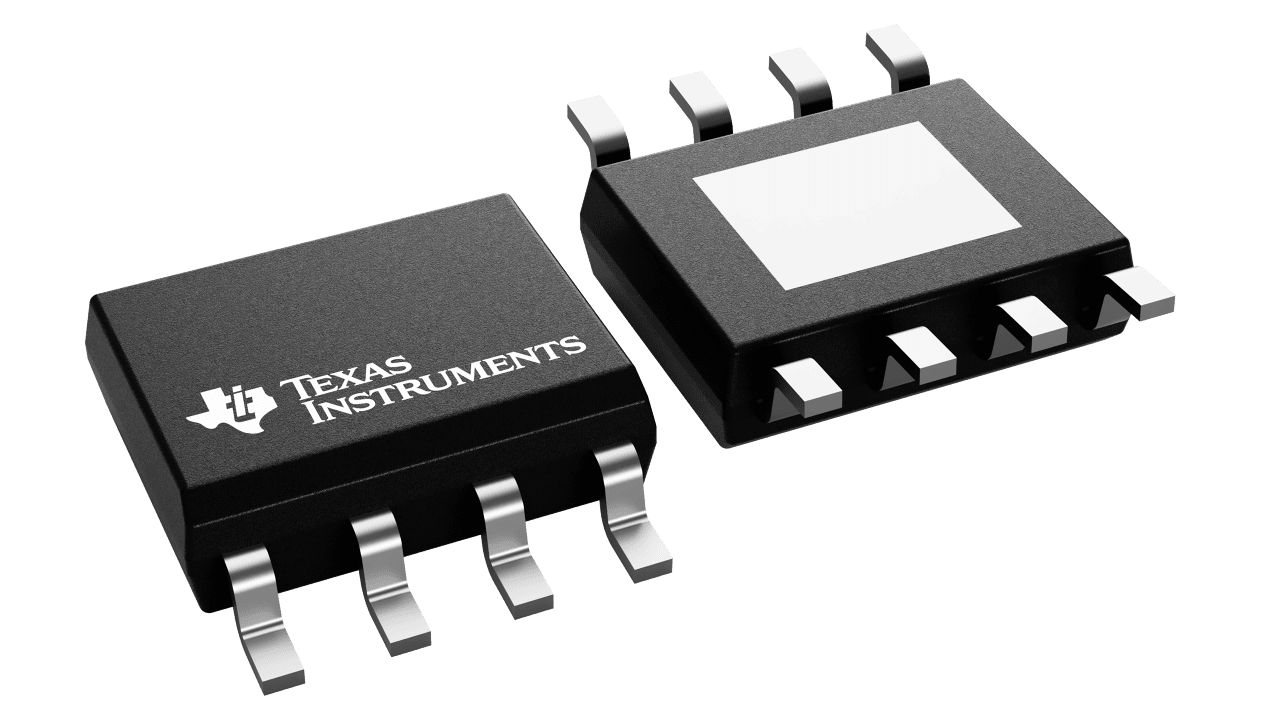

Half-bridge gate driver for driving two N-channel MOSFETs in high-side and low-side configurations. The device supports a maximum bootstrap voltage of 120 V, 3 A sink and 3 A source output currents, and 8 V undervoltage lockout for both drivers. It includes an on-chip bootstrap diode with 0.65 V forward voltage and 0.65 Ω dynamic resistance, handles negative HS voltages down to -18 V, and delivers 22 ns propagation delay with 8 ns rise and 7 ns fall times at 1000 pF load. Operating supply range is 8 V to 17 V and the device is specified from -40°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments UCC27200ADD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Driver configuration | Half-bridge |
| Channel count | 2 |
| Input supply voltage (min) | 8V |
| Input supply voltage (max) | 17V |
| Bootstrap voltage (max) | 120V |
| Peak sink current | 3A |
| Peak source current | 3A |
| Undervoltage lockout (typ) | 8V |
| Propagation delay time | 0.02µs |
| Rise time | 8ns |
| Fall time | 7ns |
| Delay matching | 1ns |
| HS negative voltage handling | -18V |
| Bootstrap diode forward voltage | 0.65V |
| Bootstrap diode dynamic resistance | 0.65Ω |
| Operating temperature range | -40 to 150°C |
| Iq | 0.001mA |
