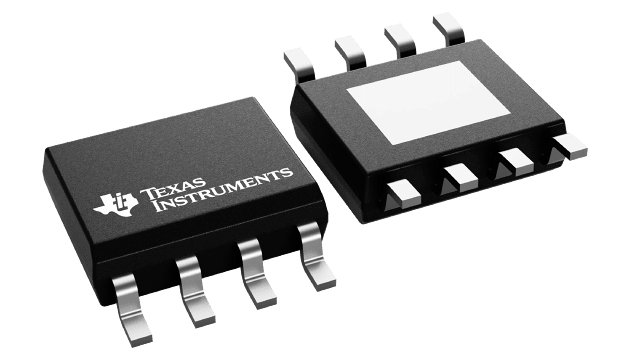

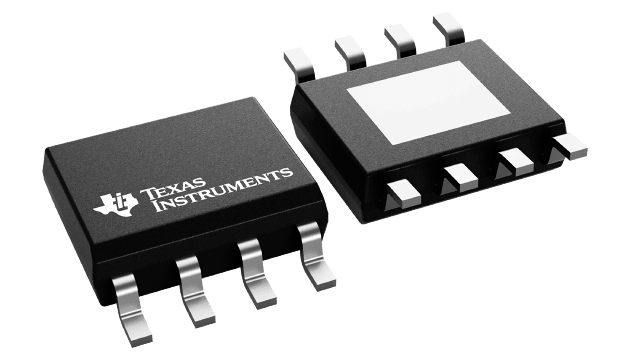

This half-bridge gate driver is designed to drive two N-channel MOSFETs in high-side and low-side configurations. It supports a bootstrap supply voltage up to 120 V, operates from an 8 V to 17 V input supply, and provides 3 A peak output current. The device includes an integrated bootstrap diode, accepts TTL inputs, and uses a noninverting driver configuration. It handles switch-node voltages down to -18 V and includes an 8 V typical undervoltage lockout. Typical switching performance is 0.02 µs propagation delay, 8 ns rise time, and 7 ns fall time, with operation from -40 °C to 150 °C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments UCC27201ADD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bootstrap supply voltage (max) | 120V |
| Power switch | MOSFET |
| Input supply voltage (min) | 8V |
| Input supply voltage (max) | 17V |
| Peak output current | 3A |
| Operating temperature range | -40 to 150°C |
| Undervoltage lockout (typ) | 8V |
| Propagation delay time | 0.02µs |
| Rise time | 8ns |
| Fall time | 7ns |
| Quiescent current | 0.001mA |
| Input threshold | TTL |
| Channel input logic | TTL |
| Switch node voltage | -18V |
| Driver configuration | Noninverting |
