Texas Instruments
UCC28630DR
High power Flyback controller with PSR, peak power mode, X-Cap discharge, and freq dither 7-SOIC -40 to 125
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCC28630DR technical specifications.
General
| Package/Case | SOIC |
| Duty Cycle | 70% |
| Fault Protection | Over Voltage, Over Temperature |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Duty Cycle | 70% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 30W |
| Mount | Surface Mount |
| Operating Supply Voltage | 12V |
| Output Current | 2A |
| RoHS Compliant | Yes |
| Thickness | 1.58mm |
| Topology | Flyback |
| Width | 3.91mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UCC28630DR Datasheet
Download the complete datasheet for Texas Instruments UCC28630DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

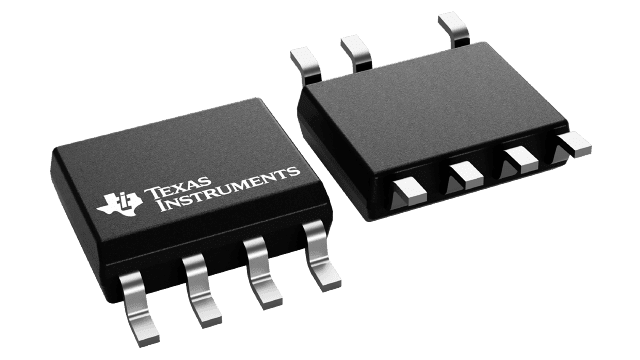

Product Images
