Texas Instruments
UCC28631D
High power Flyback controller with PSR, peak power mode, and Frequency Dither 7-SOIC -40 to 125
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCC28631D technical specifications.
General
| Package/Case | SOIC |
| Duty Cycle | 70% |
| Fault Protection | Over Voltage, Over Temperature |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 30W |
| Mount | Surface Mount |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Topology | Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UCC28631D Datasheet
Download the complete datasheet for Texas Instruments UCC28631D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

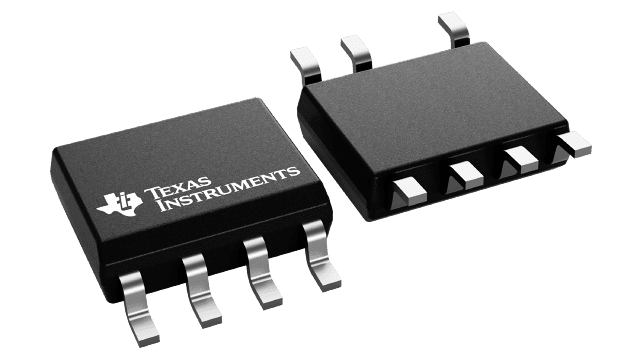

Product Images
