Single-channel gate driver IC featuring 9A peak output current and split outputs for enhanced control. Offers a 70ns propagation delay and 30ns fall time, suitable for high-speed switching applications. Operates within a 4V to 15V supply voltage range and a 0°C to 70°C temperature range. Packaged in an 8-PDIP through-hole mount for easy integration. RoHS compliant with a 350mW power dissipation.
PackagePDIP
Current1mA
MountingThrough Hole
Power350mW
Quick Jump:
Technical Specifications
Texas Instruments UCC37322P technical specifications.
General
Package/Case
PDIP
Fall Time
30ns
Height
4.57mm
Lead Free
Lead Free
Length
9.81mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
9A
Max Power Dissipation
350mW
Max Supply Current
1mA
Max Supply Voltage
15V
Min Supply Voltage
4V
Mount
Through Hole
Number of Channels
1
Number of Drivers
1
Number of Outputs
1
Output Current
9A
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
350mW
Propagation Delay
70ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1mA
Thickness
3.9mm
Turn-On Delay Time
70ns
Weight
0.015535oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UCC37322P Datasheet
Download the complete datasheet for Texas Instruments UCC37322P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

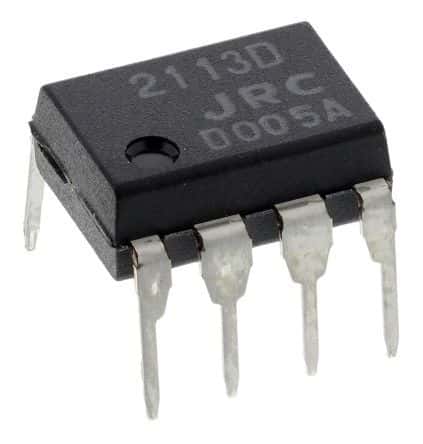

Product Images
